BRP30L200 - Eaton Eaton BR Main Lug Loadcenter

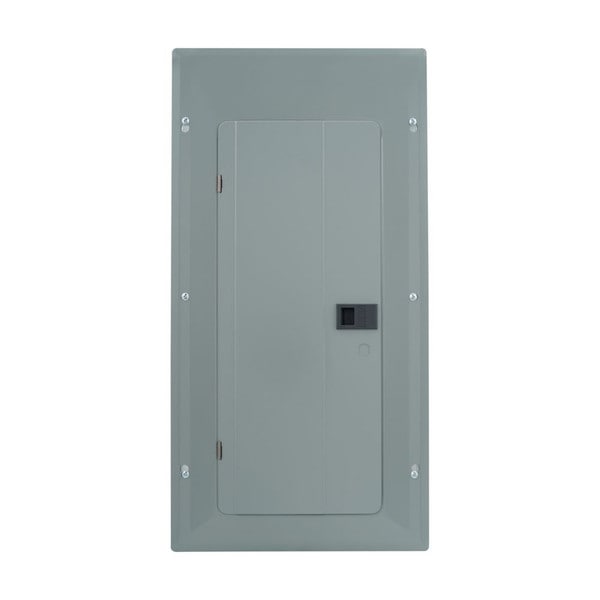

The Eaton BR Main Lug Loadcenter is a durable, high-capacity panel designed for reliable electrical distribution in indoor residential and light commercial applications. Rated at 200 Amps, this main lug-only panel features a metallic, NEMA 1 enclosure in a sleek gray finish, making it ideal for indoor surface or flush mounting.

Constructed with X5 aluminum bus bars, the loadcenter offers dependable performance and supports up to 60 circuits, 30 spaces, and 24 poles—suitable for larger installations and system expansions. With a 10 kAIC interrupting capacity, it ensures strong protection against overcurrent scenarios.

The panel is designed to accommodate two hot wires, a neutral, and a ground, maintaining full compatibility with standard residential wiring systems. It uses the CSR2200 main breaker and supports both flush and surface mounting, offering versatile installation options.

Key Features:

• 200 Amp main lug-only panel with 10 kAIC interrupting capacity
• X5 aluminum bus bars for reliable conductivity
• 60 circuits, 30 spaces, 24 poles – ideal for expanded systems
• NEMA 1 metallic enclosure for indoor use, in gray finish
• Supports two hots, a neutral, and a ground
• Compatible with surface and flush mounting
• Uses CSR2200 breaker

Choose the Eaton BR Main Lug Loadcenter for a robust, expandable, and NEC-compliant power distribution solution that delivers safety, flexibility, and ease of installation.

Documents:

Eaton Specification Sheet - BRP30L200

Warranty guides - Eaton type BR circuit breaker limited warranty June 2024
