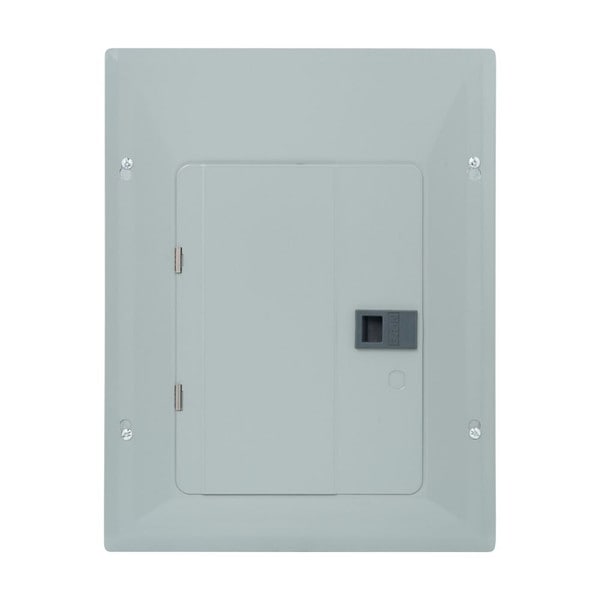

BRP16L125 - Eaton Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is a durable solution for residential and light commercial electrical distribution. With a 125 A capacity and 32 circuits, it’s ideal for installations without a main breaker. Made of aluminum with a gray metallic finish, it’s rated for 10 kAIC and provides protection against electrical faults. The loadcenter supports two hot lines, a neutral, and a ground, suitable for single-phase installations. It can be mounted surface or flush for installation flexibility.

Key Features:

• 125 A capacity for reliable distribution
• 32 circuits with 16 spaces and 24 poles
• Main Lug Only design for installations without a main breaker
• Durable aluminum with gray, metallic finish
• 10 kAIC rating for enhanced protection
• Supports two hot lines, neutral, and ground for single-phase use
• NEMA 1 rating for indoor applications
• Surface or flush mounting options

This Eaton BR Main Lug Loadcenter ensures efficient and safe electrical management for your space.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP16L125

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
