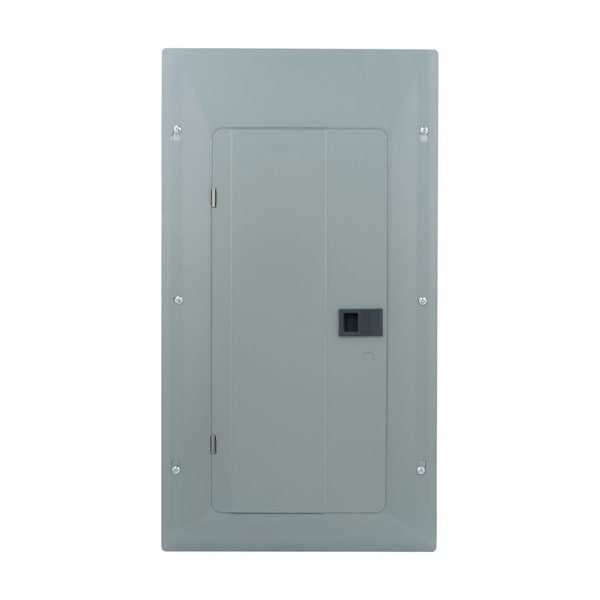

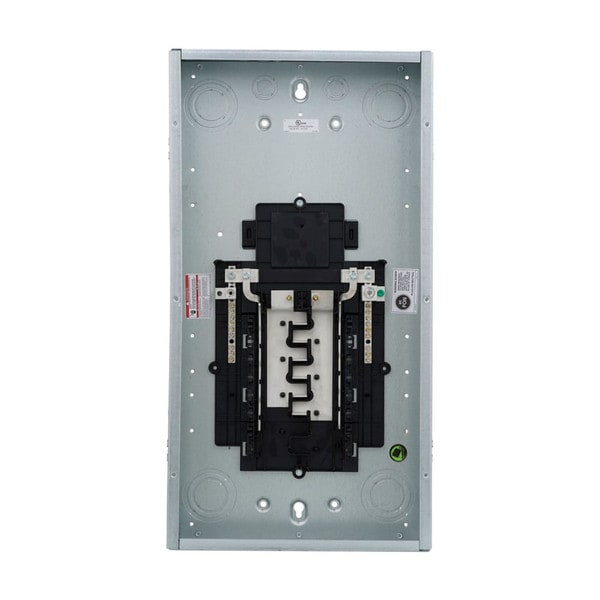

BRP12L200R - Eaton Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is designed to provide reliable power distribution and protection for residential and light commercial electrical systems. Rated at 200A, this loadcenter features a main lug-only configuration and supports Type BR 1-inch breakers. With 12 spaces and 24 circuits, it offers flexibility for various electrical applications. The NEMA 3R rating ensures that this unit can be used in outdoor environments, providing protection against dust and rain.

Key Features:

• Product Type: BR Main Lug Loadcenter
• Amperage Rating: 200A
• Main Type: Main Lug Only
• Material: Aluminum
• Interrupt Rating: 10 kAIC
• Breaker Type: Type BR 1-Inch Breakers
• Spaces: 12 Spaces
• Circuits: 24 Circuits
• Voltage Rating: 120/240V
• Configuration: Three-Wire, Single-Phase
• NEMA Rating: NEMA 3R (Outdoor Use)
• Enclosure Material: Metallic

This loadcenter offers both safety and versatility for a range of electrical installations, especially in outdoor environments where protection against the elements is essential.
