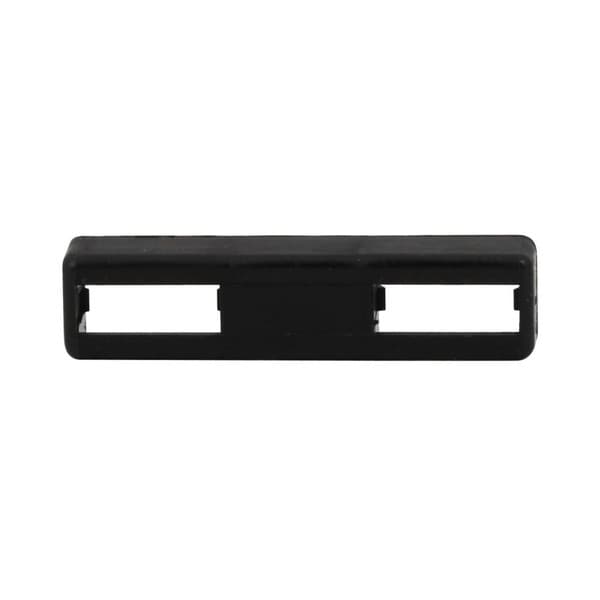

BRHT - Handle Tie

A Handle Tie is an essential component used in electrical systems to connect two circuit breakers together, ensuring they operate in tandem. Typically used in multi-pole configurations, the handle tie ensures that both breakers trip simultaneously in the event of an overload or short circuit. This provides enhanced safety by preventing one breaker from being turned on while the other is off, thus maintaining the integrity and reliability of the electrical system. Handle ties are commonly used in residential, commercial, and industrial applications, particularly when two breakers are needed for a single multi-phase load.

Key Features:

• Accessory Type: Handle Tie
• Purpose: Connects two circuit breakers to ensure simultaneous operation
• Usage: Ideal for multi-pole configurations
• Safety: Prevents one breaker from being on while the other is off
• Material: Durable construction for reliable, long-lasting performance
• Compatibility: Designed for use with specific circuit breakers (verify with the manufacturer)
• Application: Commonly used in residential, commercial, and industrial electrical panels

A Handle Tie is an important safety accessory that helps maintain the proper functioning of circuit breakers in multi-pole configurations, providing reliable protection for electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BRHT
