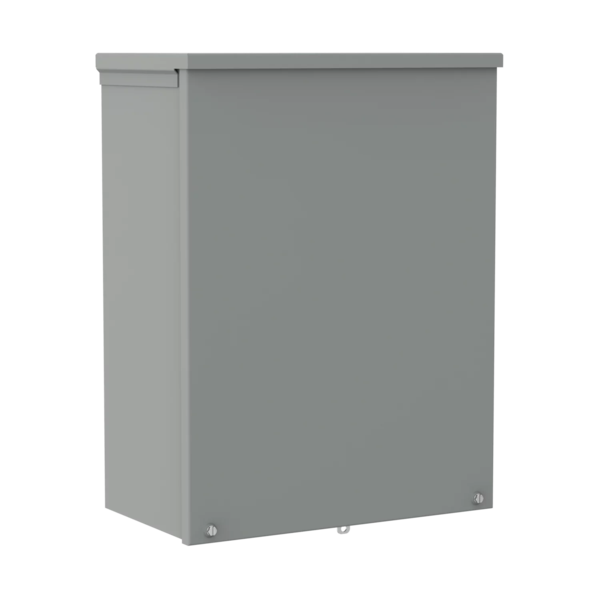

A18R188 - Enclosure

The Steel Enclosure with a screw cover is designed for reliable protection and secure housing of electrical components. Constructed from durable galvanized steel, this enclosure features an embossed design for added strength and durability. It comes with a gray galvanized paint finish that ensures long-lasting resistance to corrosion and environmental wear. The enclosure measures 18 inches in width, 18 inches in length, and 8 inches in height, making it suitable for various electrical applications. Equipped with 5 knockouts for flexible wiring connections, it provides easy installation and maintenance. With a total weight of 24.1 lbs, this enclosure is built to withstand demanding industrial and commercial environments.

Key Features:

• Product Type: Steel Enclosure with Screw Cover
• Material: Galvanized steel for strength and corrosion resistance
• Design: Embossed surface for enhanced durability
• Finish: Gray galvanized paint for long-term protection
• Dimensions: 18 inches (Width) x 18 inches (Length) x 8 inches (Height)
• Knockouts: 5 knockouts for flexible wiring options
• Weight: 24.1 lbs
• Application: Ideal for housing electrical components in industrial, commercial, and residential settings
• Mounting Type: Surface mount

The Steel Enclosure provides a secure and efficient solution for housing electrical systems, offering protection against environmental factors while ensuring easy access and installation flexibility.

Documents:

2D DXF
Screw-Cover, Type 3R 2D DXF CAD File

3D Step
A18R188 3D Step CAD File

Data Sheet
Screw-Cover, Type 3R Spec Sheet
