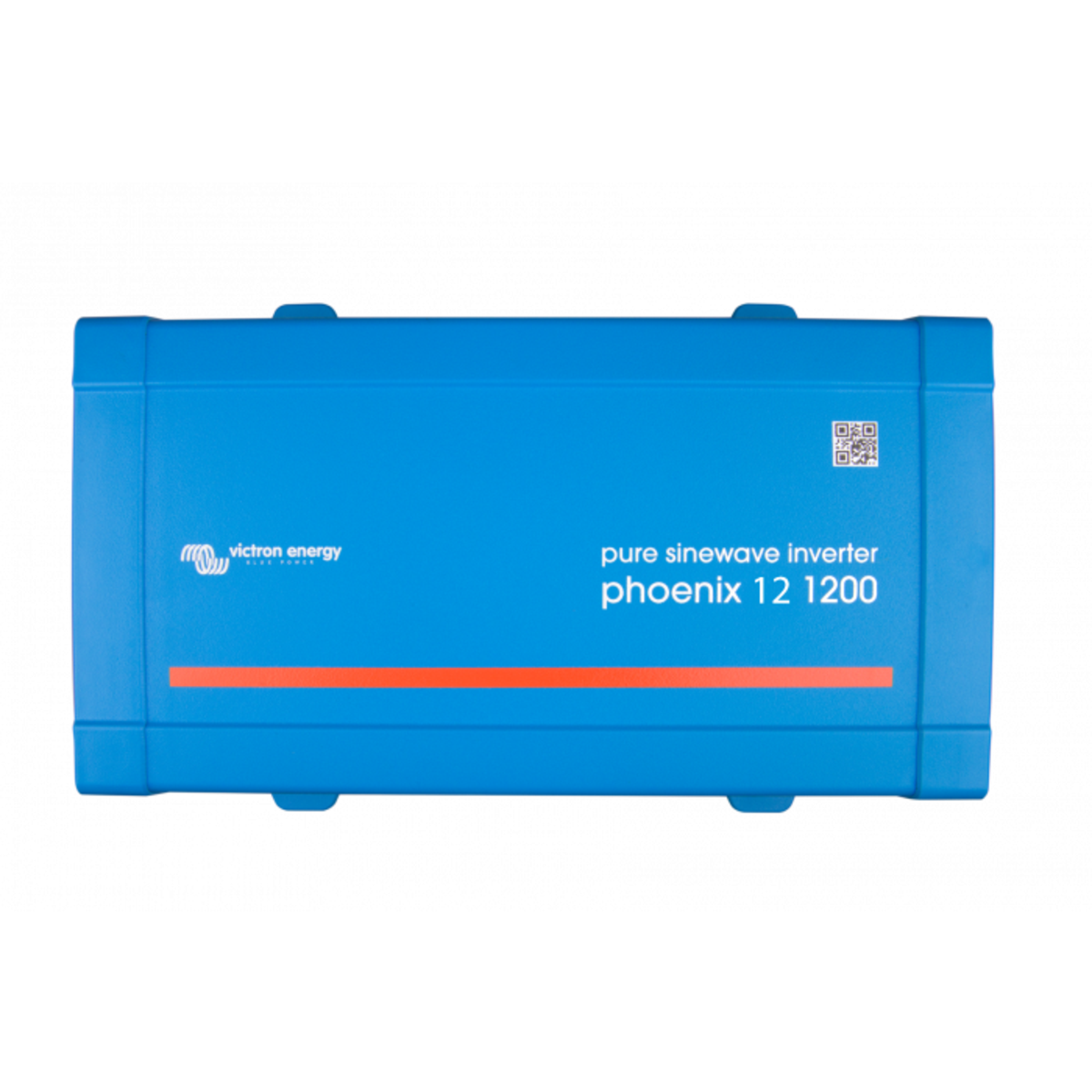

Victron Phoenix Inverter 12V 120VAC VE.Direct NEMA GFCI

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

Features

• VE.Direct communication port - The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed), Apple and Android smartphones, tablets, MacBook's and other devices (VE.Direct Bluetooth Smart dongle needed)
• Fully configurable - Low battery voltage alarm trip and reset levels, Low battery voltage cut-off and restart levels, Dynamic cut-off: load dependent cut-off level, output voltage 210 - 245V, Frequency 50 Hz or 60 Hz, ECO mode on/off and ECO mode sense level
• Monitoring - In- and output voltage, % load and alarms
• Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature
• High start-up power - Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools
• ECO mode - When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on
• Remote on/off - A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector
• LED diagnosis - Please see manual for a description
• To transfer the load to another AC source: the automatic transfer switch - For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption
• DC connection with screw terminals - No special tools needed for installation
• Battery Alarm - An excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signaling
• BMV Battery Monitor - The BMV Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms to exactly determine the state of charge of the battery. The BMV selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery
• Highly Reliable - built for the years ahead - Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected
• Full bursts - High Peak output - Some electronic devices - particularly those which have an electric motor - require short burst of energy on start-up which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry-leading peak-power capability
• Intelligent alarms, shut-downs, and re-starts - A high power draw on start-up can trigger false alarms, and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently - shut downs will be followed by a series of re-starts - to eliminate "false alarms"
• Conserve power with Eco mode - In Eco mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required
• User-configurable settings - Phoenix has a communication port providing access to status information, alarms and automatic user-configurable low-voltage shut downs. Shut downs will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via VictronConnect - our free-to-use app

Specifications

• Material: Steel Chassis & Plastic Cover
• Color: Blue (RAL 5012)
• DC Input Voltage: 9.2-17 V
• Output AC Voltage: 120 VAC ±3% (Inverter)
• Output AC Frequency: 50/60 Hz ±0.1% (Inverter)
• Dynamic (Load Dependent) DC Low Shut Down: Fully Configurable Dynamic Cut-Off
• ECO Mode Stop & Start Power Setting: Adjustable
• Protection: A-F
• Battery Connection: Screw Terminals
• Standards AC Outlets: NEMA GFCI
• Protection Category: IP21
• Operating Temperature: -40 to 65°C
• Humidity: Maximum 95% (Non-Condensing)
• Remote On/Off: Yes
• Automatic Transfer Switch: Filax
• Cooling: Fan Assisted
• Standards:
  • Safety: EN-IEC 60335-1/EN-IEC 62109-1
  • EMC: EN 55014-1/EN 55014-2/IEC 61000-6-1/IEC 61000-6-2/IEC 61000-6-3
  • Automotive Directive: ECE R10-4
• Warranty: 5 Years Limited
