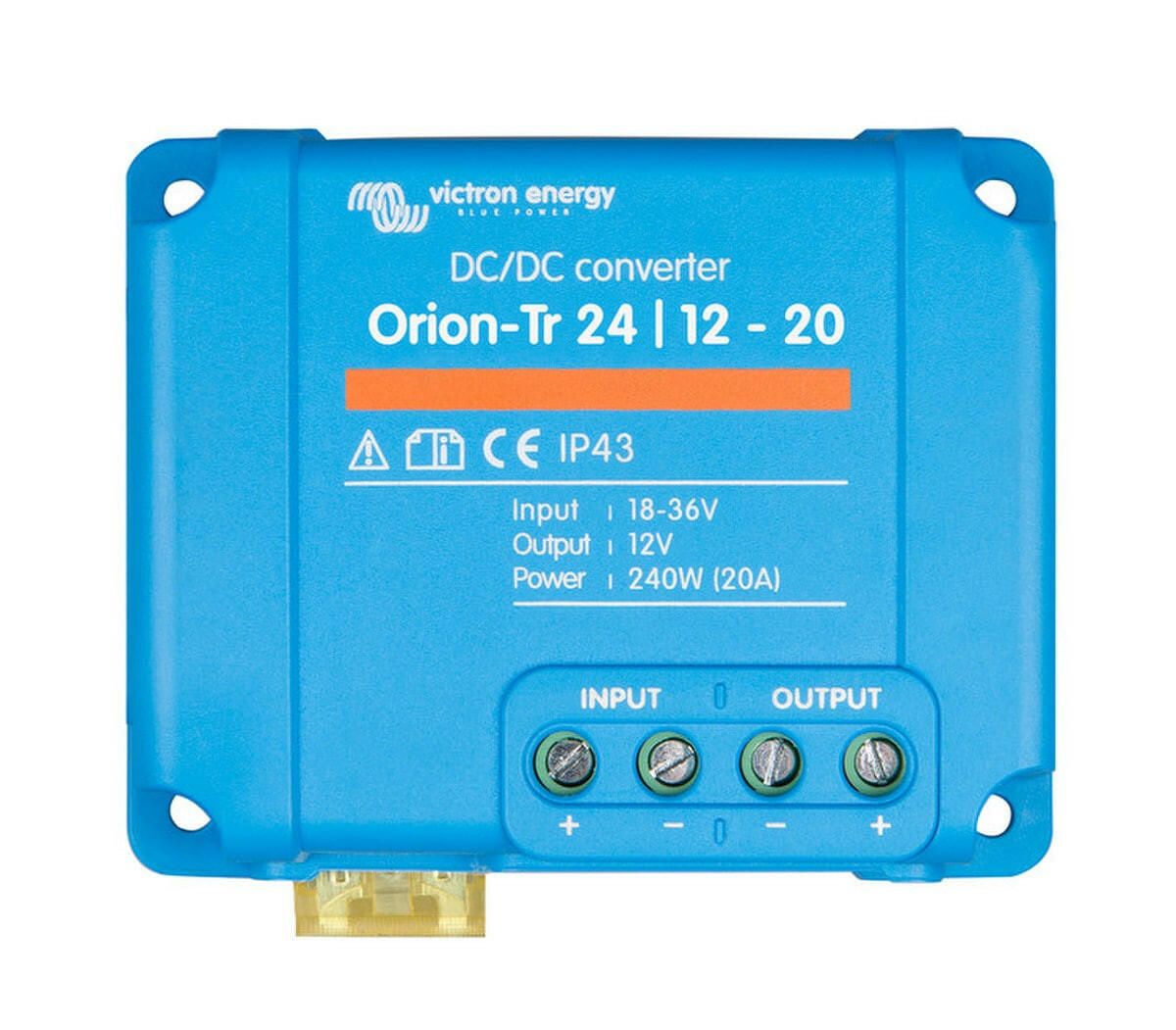

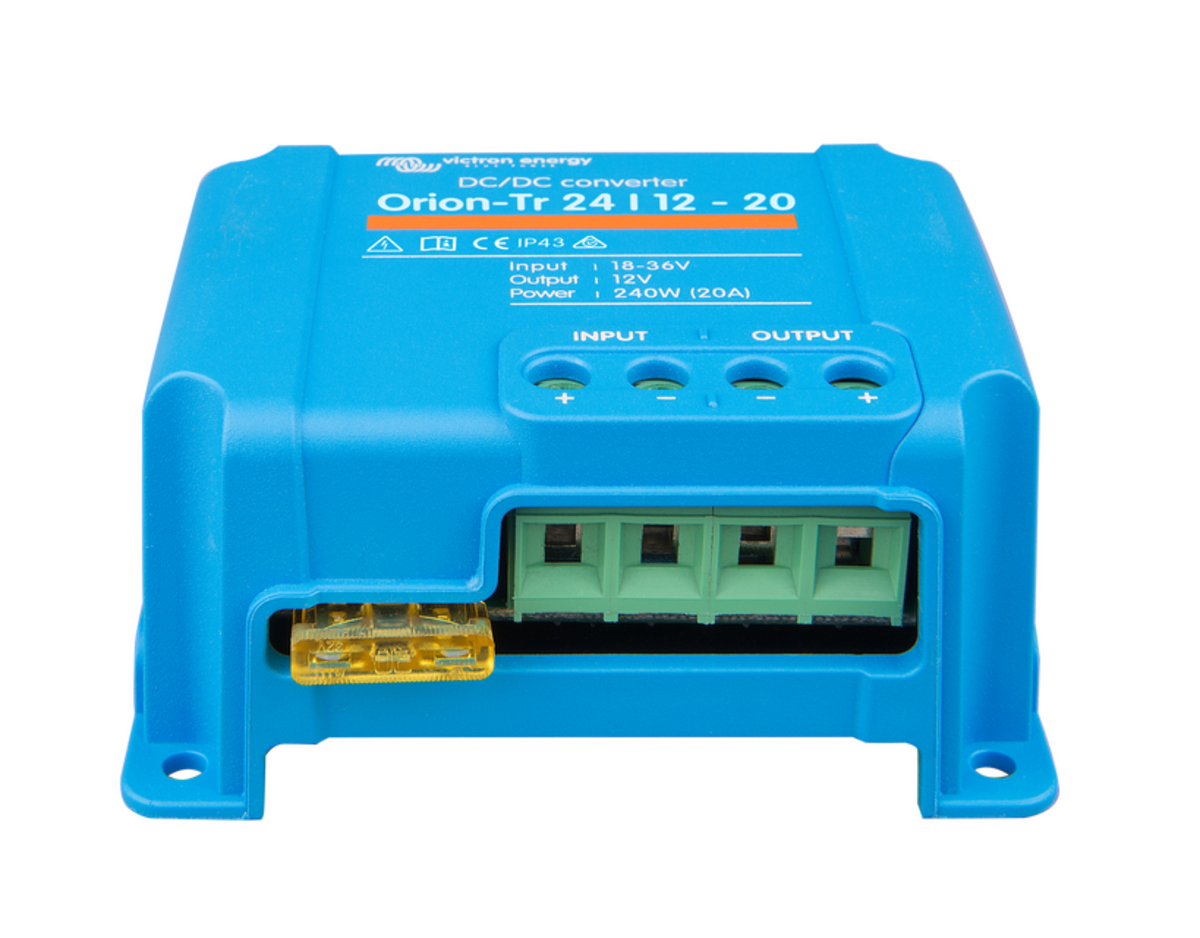

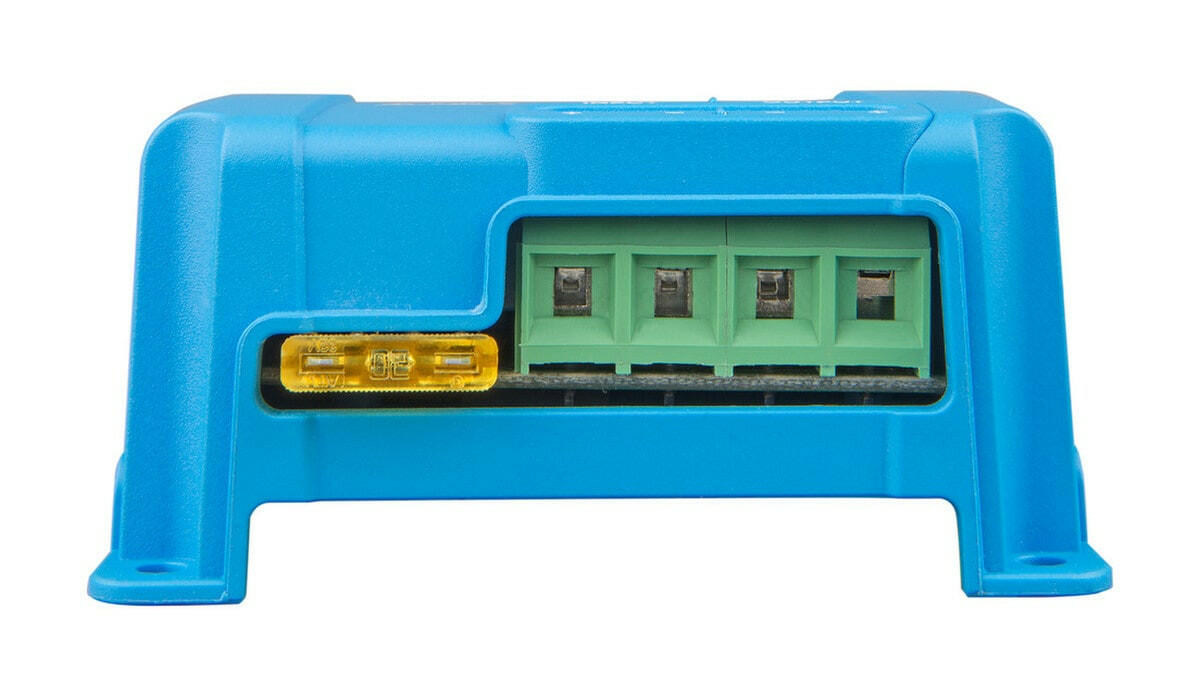

Victron Orion-Tr 24V to 12V - 240W 20A Non Isolated DC/DC Converter (SKU Part Number ORI241220200R)

$43.00
$43.00
(-0%)
Verkäufer: Victron Energy
Artikelnummer: ORI241220200R
Verfügbarkeit: Auf Lager
Zwischensumme: $43.00
10 Kunden sehen sich dieses Produkt an

Features

  • High efficiency - Using synchronous rectification, full load efficiency exceeds 95%
  • IP43 protection - When installed with the screw terminals oriented downwards
  • Screw terminals - No special tools needed for installation

Specifications

  • Type: Non-Isolated
  • Input Voltage Range: 18-35 V
  • Output Voltage: 12.5 V
  • Continuous Output Current: 20 A
  • Galvanic Isolation: No
  • Off Load Current: <35 mA
  • Operating Temperature (Derate 3% Per °C Above 40 °C): -20 to 55 °C
  • DC Connection: Screw Terminals
  • Maximum Cable Cross-Section: 6 mm² (10 AWG)
  • Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
  • Dimensions: 2.9 in x 3.7 in x 1.8 in
  • Weight: 0.55 lb

Documents

Victron Orion-Tr 24V to 12V - 240W 20A Non Isolated DC/DC Converter (SKU Part Number ORI241220200R)

Victron Orion-Tr 24V to 12V - 240W 20A Non Isolated DC/DC Converter (SKU Part Number ORI241220200R)

$43.00

Victron Orion-Tr 24V to 12V - 240W 20A Non Isolated DC/DC Converter (SKU Part Number ORI241220200R)

$43.00
