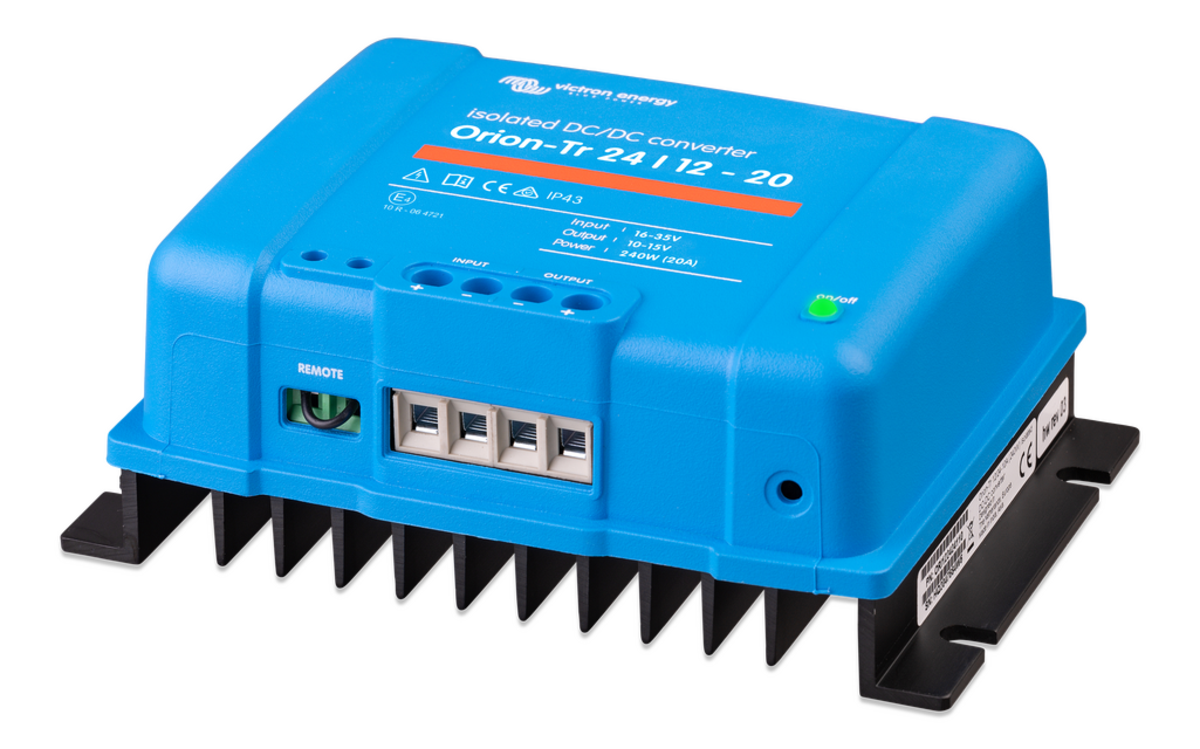

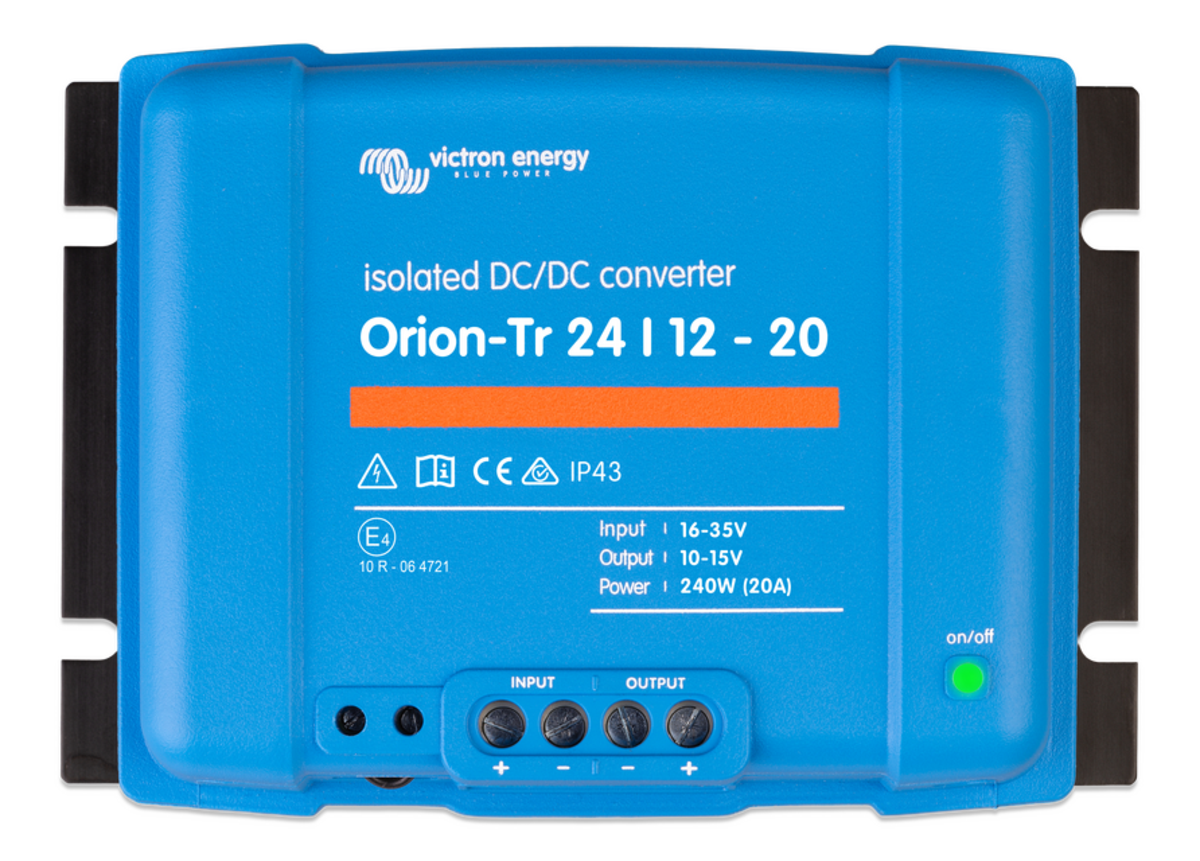

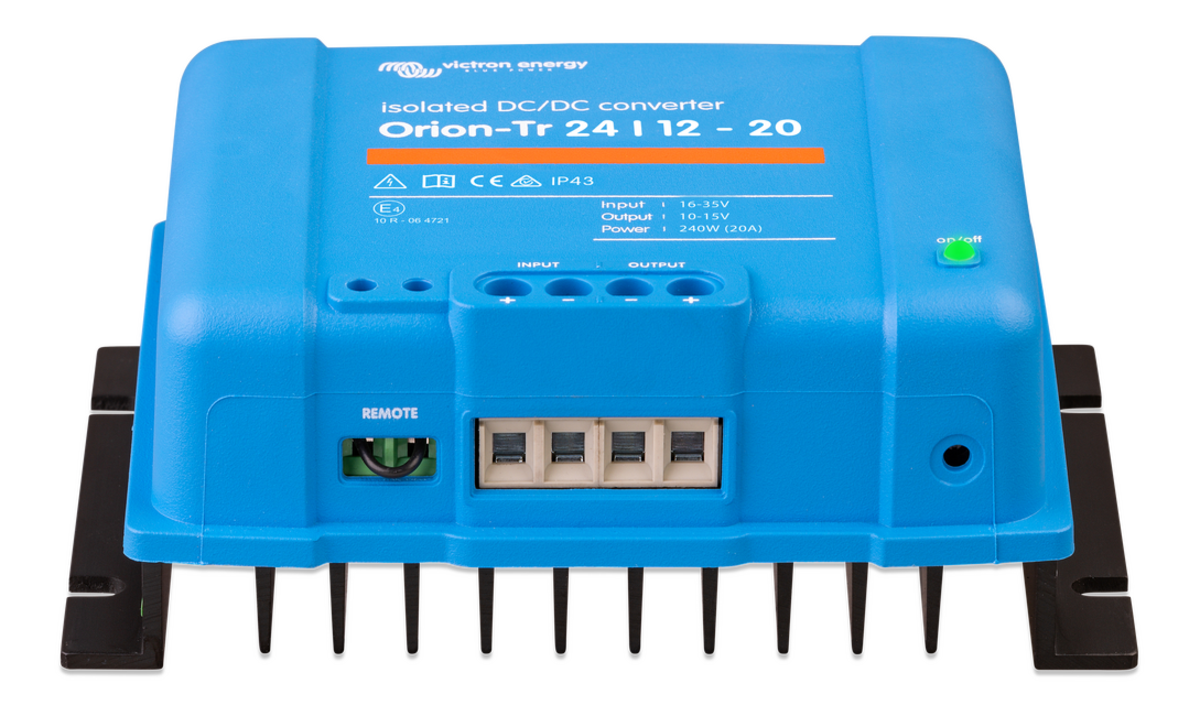

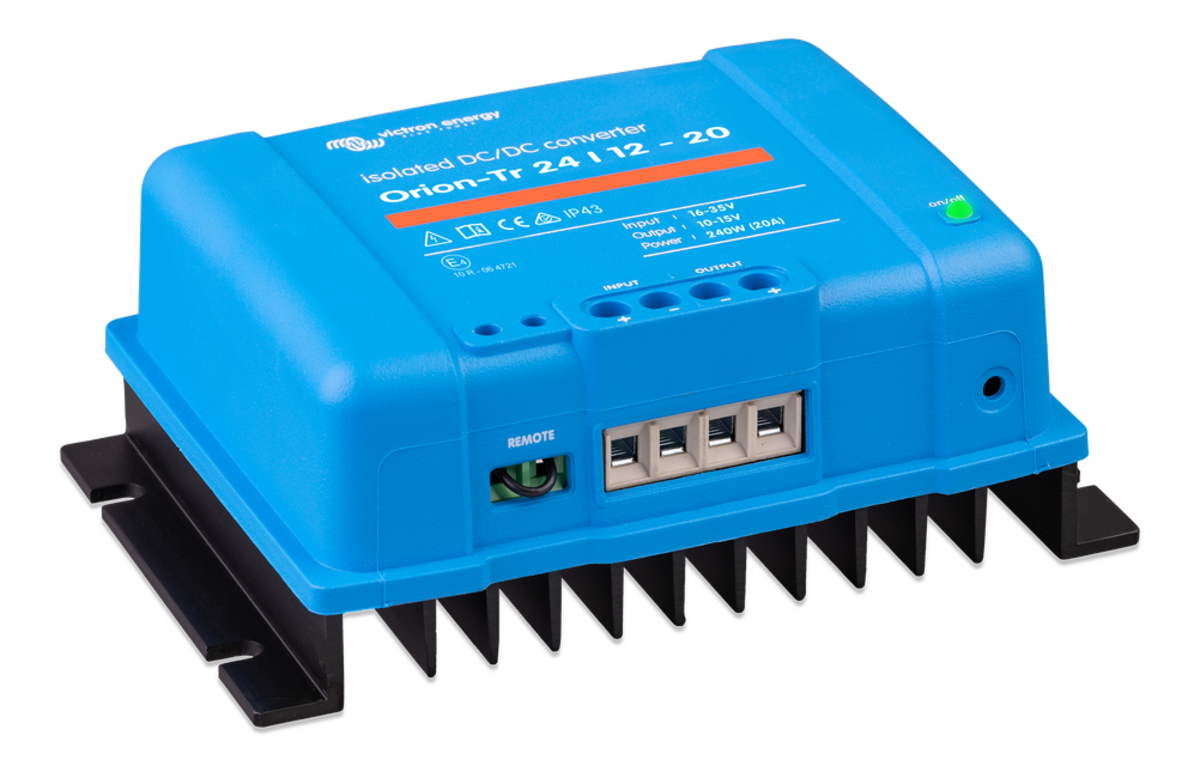

Victron Orion-Tr 24V to 12V - 240W 20A Isolated DC-DC Converter (SKU Part Number ORI241224110)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 12 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25°C: 320 W
• Continuous Output Power at 40°C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 µA When Disabled Via Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5

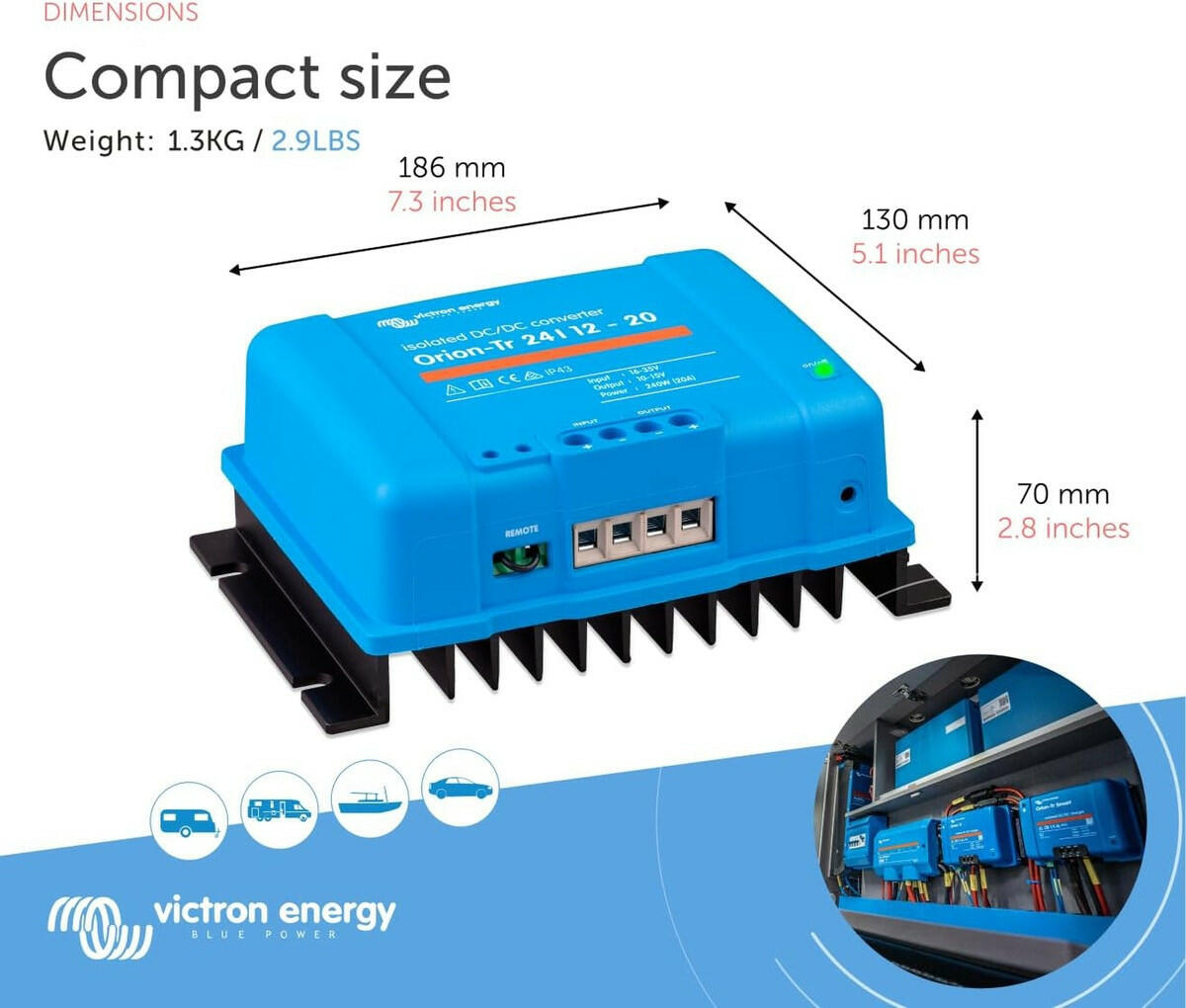

• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet
• Technical Drawing
• Instruction/Installation Manual
