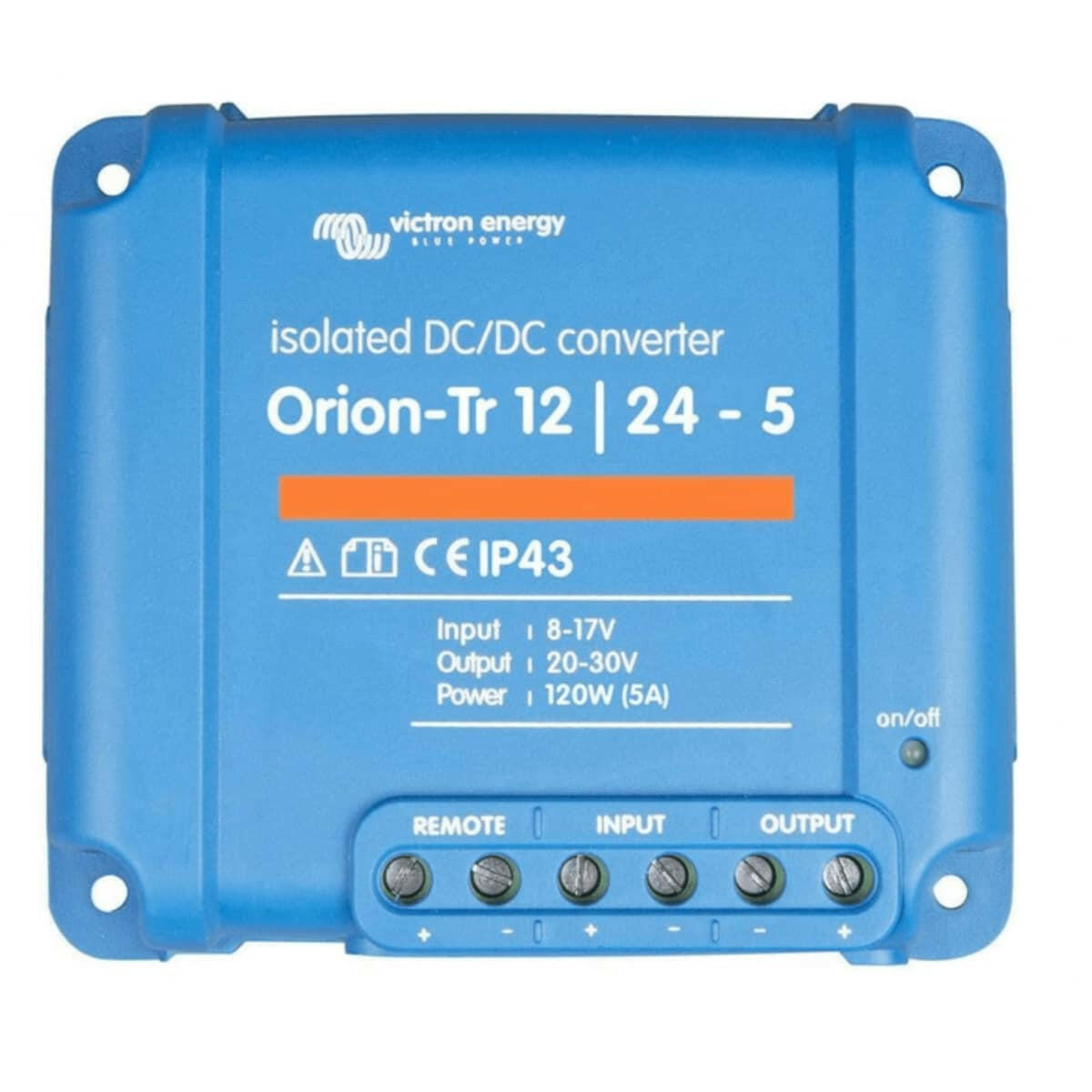

Victron Orion-Tr 12V to 24V - 120W 5A Isolated DC/DC Converter (SKU Part Number ORI122410110)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 8-17 V
• Under Voltage Shutdown: 7 V
• Under Voltage Restart: 7.5 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 25°C: 5 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 6.3 A
• Short-Circuit Output Current: 23 A
• Continuous Output Power at 25°C: 120 W
• Continuous Output Power at 40°C: 110 W
• Efficiency: 88%
• No Load Input Current (2): <80 mA
• Current Consumption: <200 µA When Disabled Via its Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 4 in x 4.5 in x 1.9 in
• Weight: 1 lb
