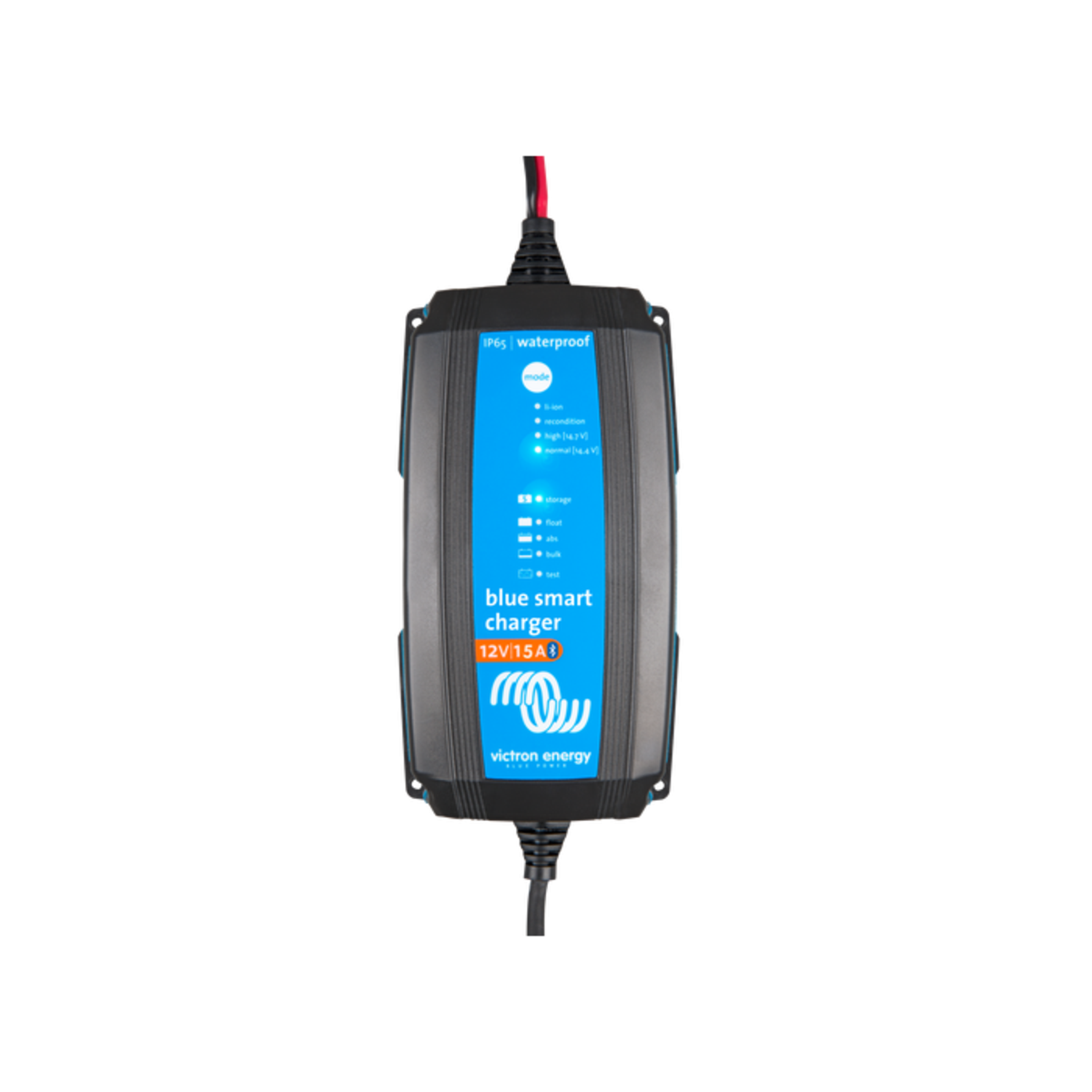

Victron Blue Smart IP65 Charger 12V-15A (SKU Part Number BPC121531104R)

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Features

• The battery is charged, smartly to perfect condition - The seven-step charging algorithm gets the best out of your battery
• The charger gives the battery the power it needs, maintains its health, ensures better performance and a longer life
• Recovery of deeply-discharged 'dead' batteries - Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current
• Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals
• Connect the battery with ease - The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery
• If you wish, you can leave it permanently connected
• Check the status of your battery remotely - The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app
• Ultra high efficiency "green" battery charger With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard
• Durable, safe and silent - Low thermal stress on the electronic components - Protection against ingress of dust, water and chemicals - Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail - The chargers are totally silent: no cooling fan or any other moving parts
• Reconditioning - A lead-acid battery that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with low current up to a higher voltage
• Recovery function for fully discharged batteries - Most reverse polarity protected chargers will not recognize, and therefore not recharge a battery which has been discharged to zero or nearly zero Volts. The Blue Smart IP65 Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals
• Storage mode: less corrosion of the positive plates - Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger during more than 48 hrs
• Temperature compensated charging - The optimal charge voltage of a lead-acid battery varies inversely with temperature
• The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charge process. The temperature is measured again when the charger is in low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed
• Li-ion battery mode - The Blue Smart IP65 Charger uses a specific charging algorithm for Li-ion (LiFePO₄) batteries, with automatic Li-ion under voltage protection reset


Specifications

• Series/Model: Blue Smart
• Input Voltage: 120 VAC
• Output Voltage: 12 VDC
• Charge Current Rating: 15 A
• Standby Power Consumption: 0.5 W
• Minimum Battery Voltage: Starts Charging from Down to 0 V
• Charge Voltage Absorption:
  • Normal: 14.4 V
  • High: 14.7 V
  • Li-ion: 14.2 V
• Charge Voltage Float:
  • Normal: 13.8 V
  • High: 13.8 V
  • Li-ion: 13.5 V
• Charge Voltage Storage:
  • Normal: 13.2 V
  • High: 13.2 V
  • Li-ion: 13.5 V
• Charge Current in Low Current Mode: 2/2/2/3/4 A
• Temperature Compensation: 16 mV/°C (9 mV/°F)
• Can be Used as Power Supply: Yes
• Back Current Drain: 0.7 Ah/Month (1 mA)
• Protection: Reverse Polarity, Output Short Circuit, Over Temperature
• Operating Temperature: 0-140°F
• Humidity: Maximum 95% (Non-Condensing)
• Battery Connection: Black & Red Cable of 1.5 m (4.9 ft)
• 120 VAC Connection: Cable of 1.8 m (5.9 ft) with US NEMA 1-15 Plug
• Protection Category: IP65
• Standards:
  • UL 1236, CSA C22.2
  • EN 60335-1, EN 60335-2-29
  • Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
  • Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
• Dimensions: 1.8 in × 3.7 in × 7.5 in
• Weight: 2 lb


Documents

• Specification Sheet
• Technical Drawing
