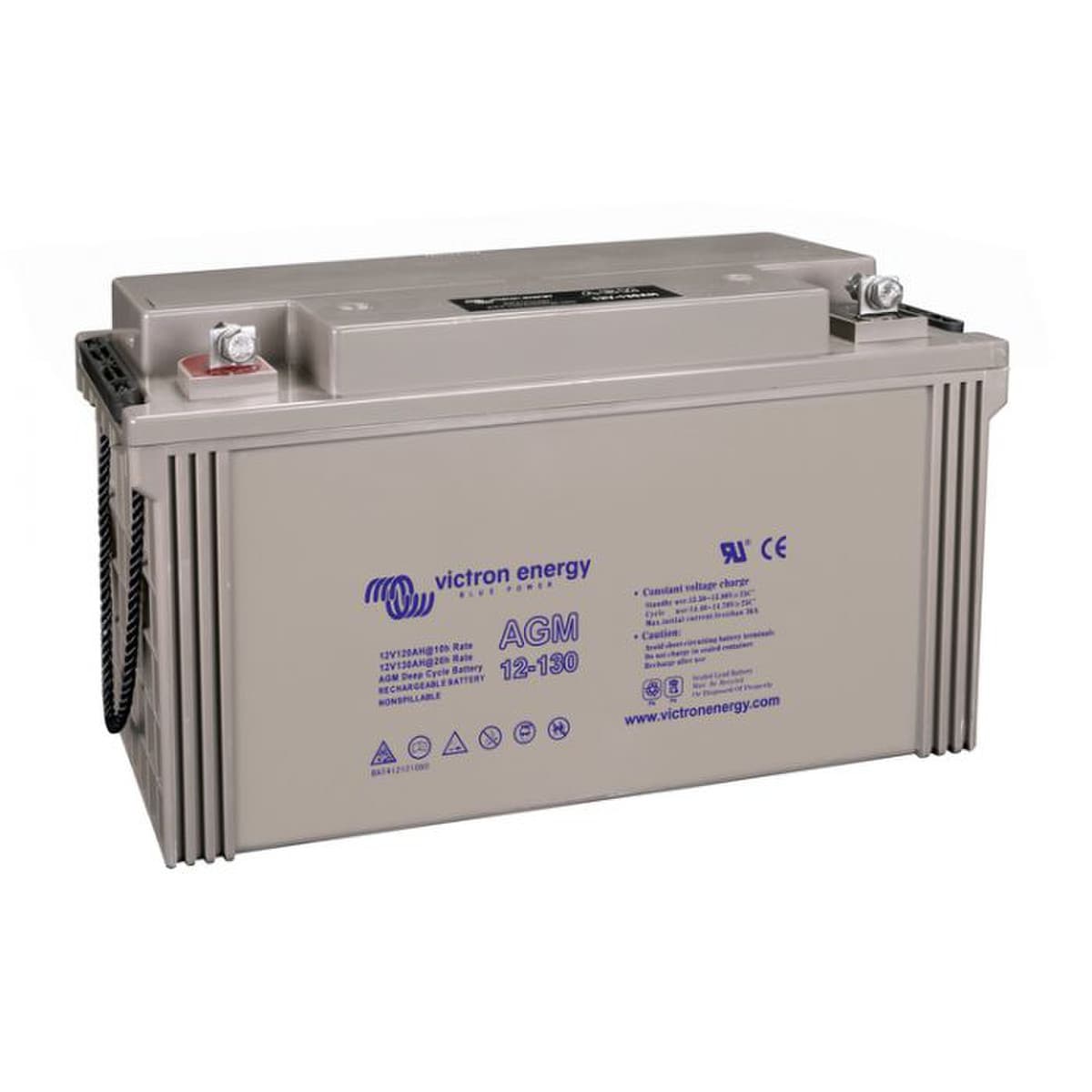

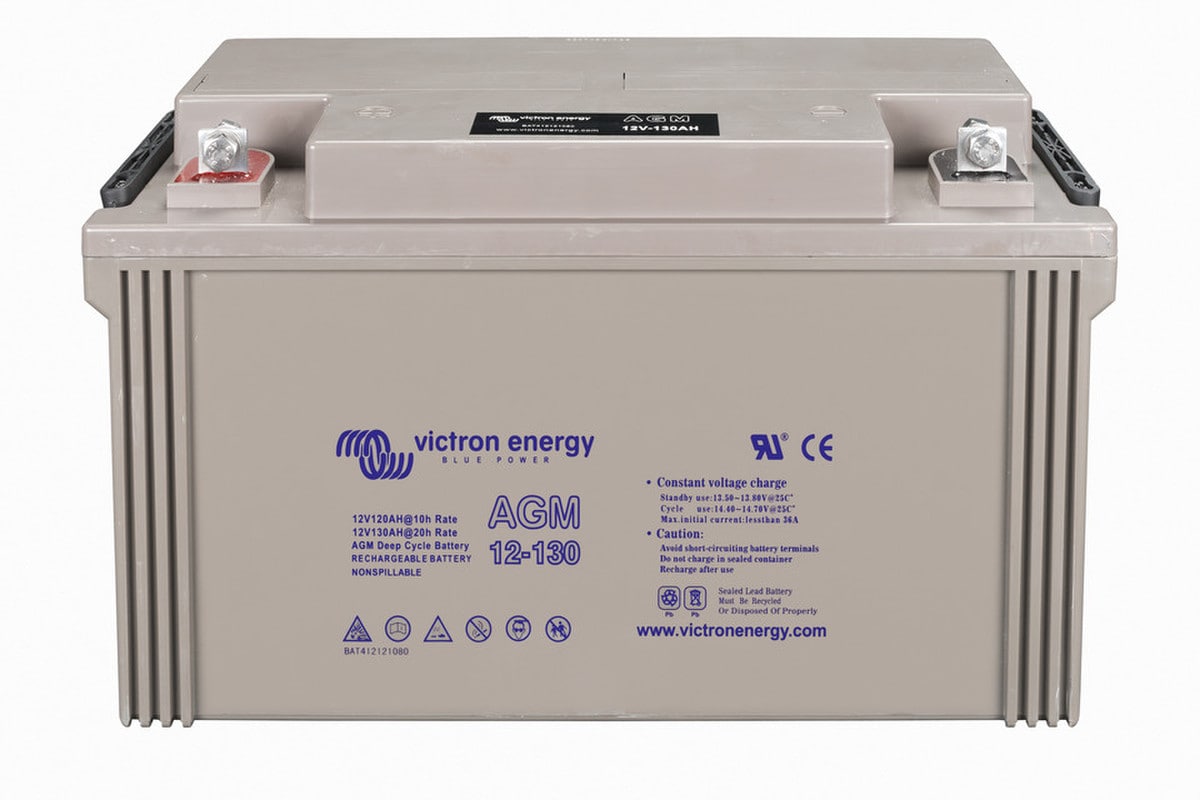

Victron 12V/130Ah AGM Deep Cycle Battery (SKU Part Number BAT412121084)

The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches. The GEL model range offers best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensure that for both AGM and GEL products have particularly low self-discharge so that they will not go flat during long periods without charge. Both ranges are supplied with M8 drilled, flat copper terminals ensuring best possible connection contact and eliminating the need for battery terminals. The batteries are compliant with both CE and UL specifications in ABS fireproof containers and come with Victron's 2 year world-wide warranty.

Features

• AGM stands for Absorbent Glass Mat
• In these batteries the electrolyte is absorbed into a glass-fiber mat between the plates by capillary action
• As explained in our book 'Energy Unlimited', AGM batteries are more suitable for short-time delivery of high currents than gel batteries
• VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed
• Gas will escape through the safety valves only in case of overcharging or cell failure
• VRLA batteries are maintenance free for life


Specifications

• Voltage Rating: 12 V

• Capacity: 130 Ah

• Float Design Life: 400 Cycles at 80% Discharge, 600 Cycles at 50% Discharge, 1500
• Cycles at 30% Discharge

• Rated Capacity: 20 hr Discharge at 25 deg C

• Terminals: Copper

• Technology: Flat Plate AGM

• Dimensions: 410 in x 176 in x 227 in

• Weight: 38 kg

Documents

• Specification Sheet
• Technical Drawing
• MSDS
