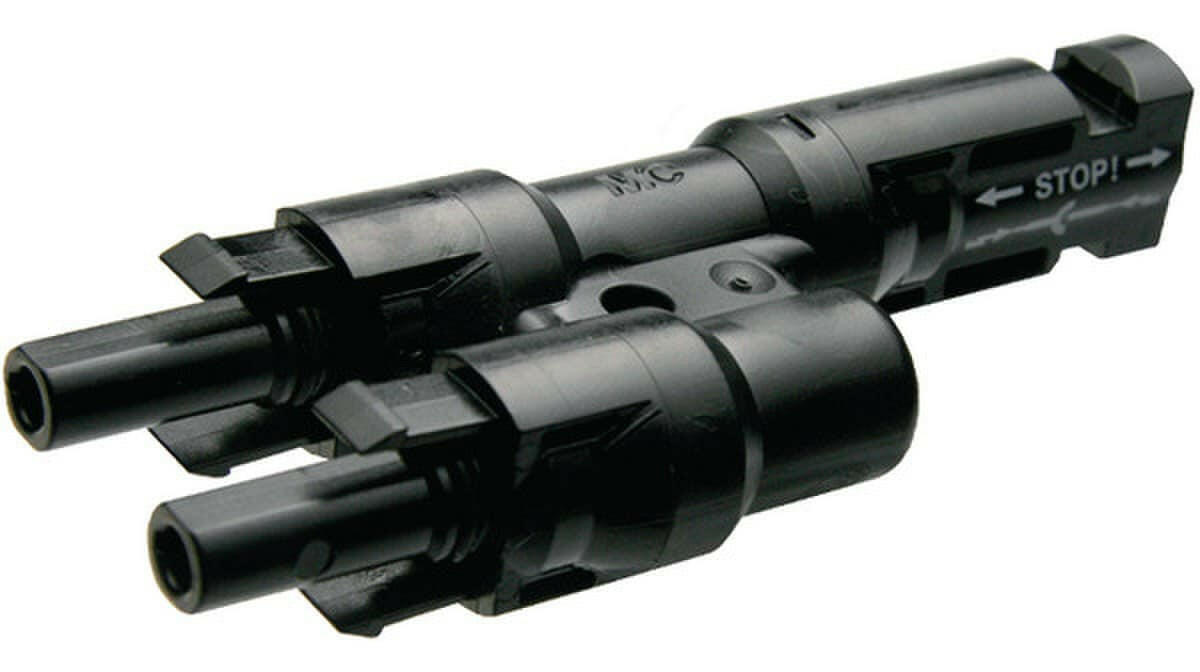

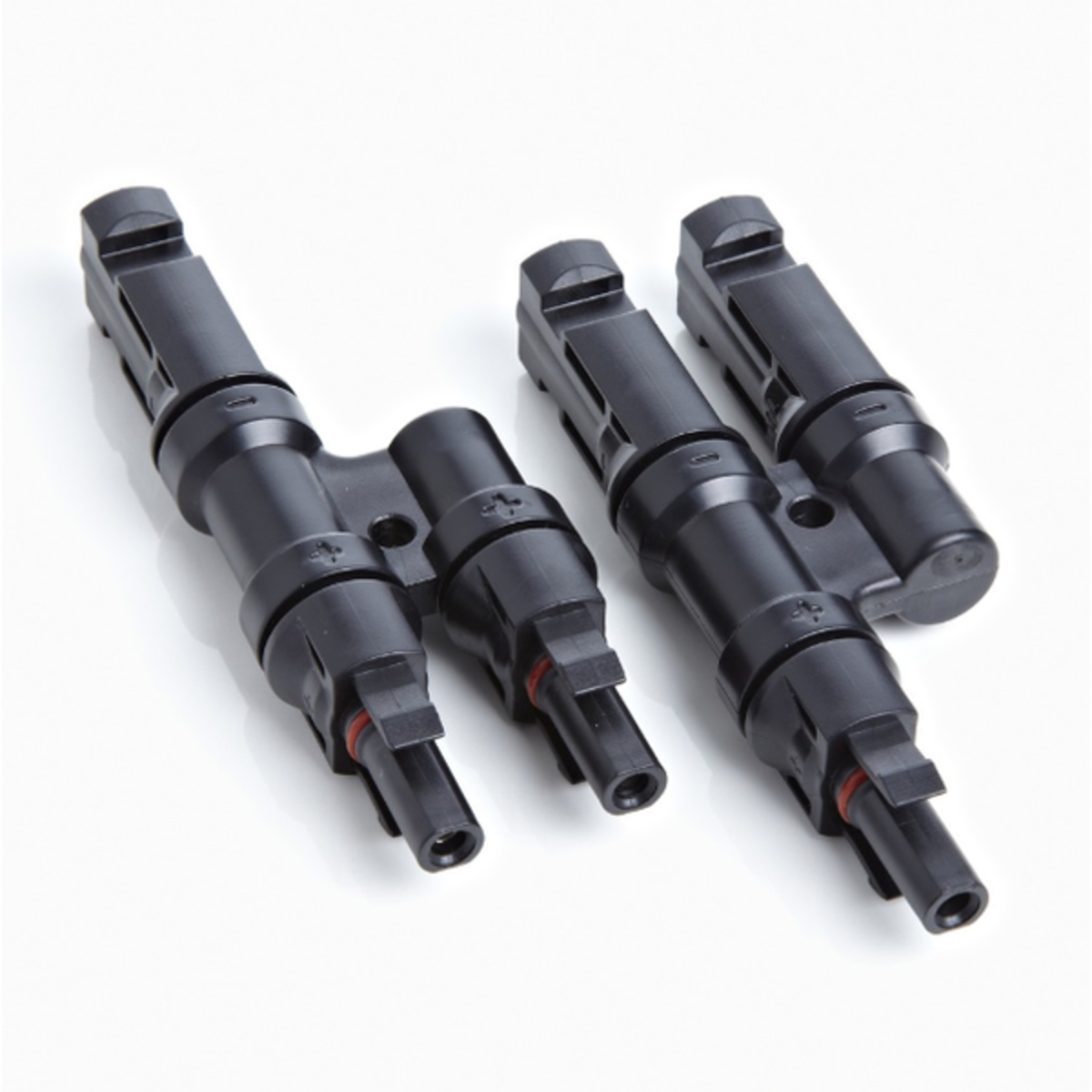

Staubli (2) Male x (1) Female MC4 Branch Connector

Branch connector for a safe and reliable parallel (or serial-parallel) connection of PV-modules.

Features

• Plug-and-play: no crimping or torquing necessary
• Versatility and compact dimensions
• Mating compatibility with MC4 and MC4-Evo 2 connector
• DC 1500 V according to IEC 62852 and UL 6703
• Resistance to salt mist spray
• Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
• World's first dual certified DC 1500 V branch connector


Specifications

• Connection Type: (2) Male x (1) Female
• Contact Type: Plug
• Contact Resistance: <0.5 mOhm
• Rated Impulse Voltage: 16 kV
• Rated Voltage: 1500 VDC
• Test Voltage: 8 kV
• Rated Current: 60 A IEC, 50 A UL
• Contact Material: Tin Plated Copper
• Insulation Material: PA
• Contact System: Multilam
• Degree of Pollution: 3
• Enclosure Rating: IP65/IP68
• Operating Temperature: -40 to 85°C (IEC) Ambient, -40 to 90°C (UL) Ambient
• Fire Protection Class: UL94:V-0
• Standards: UL E343181, CE Certified, IEC 62852:2014+AMD1:2020 - R 60149724, ETL Listed
• Dimensions: 42.8 mm Height x 55 mm Length


Documents

• Catalog
• Instruction/Installation Manual
