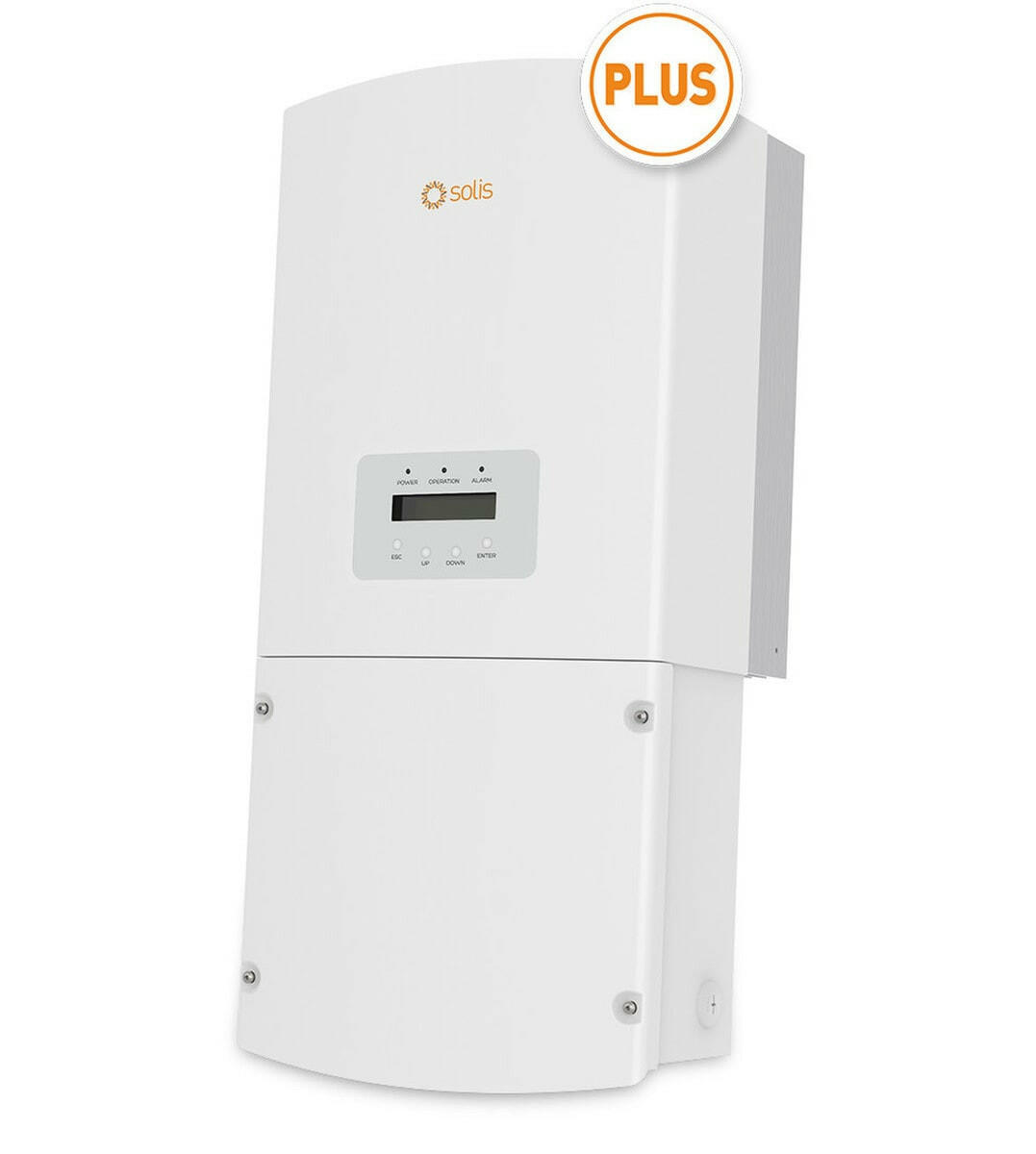

Solis Ginlong Technologies 10 kW Natural Convection Single-Phase String Inverter

Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

Features

• String current up to 14A
• Support module level monitoring
• Industry-leading 3 and 4 MPPT designs
• CA Rule 21 compliant and UL 1741 SB Certified
• Integrated module level rapid shutdown transmitter
• Sunspec protocol with option cellular and WiFi
• AFCI protection, proactively reduces fire risk


Specifications

• Type: Single-Phase
• Length: 28.8 in
• Width: 13.1 in
• Depth: 9.8 in
• Input Voltage: 600 V
• Output Voltage: 240/208 V
• Power Rating: 10 kW
• Input Current: 14 A
• Amperage Rating: 41.7/43.3 A
• Efficiency: 97.8%
• Frequency Rating: 60 Hz
• Cooling Type: Natural Convection
• Power Factor: >0.99
• Connection Type: Knockout/Screw Terminal
• Temperature Rating: -13 to 140 deg F
• Display Type: LCD


Documents

• Specification Sheet
