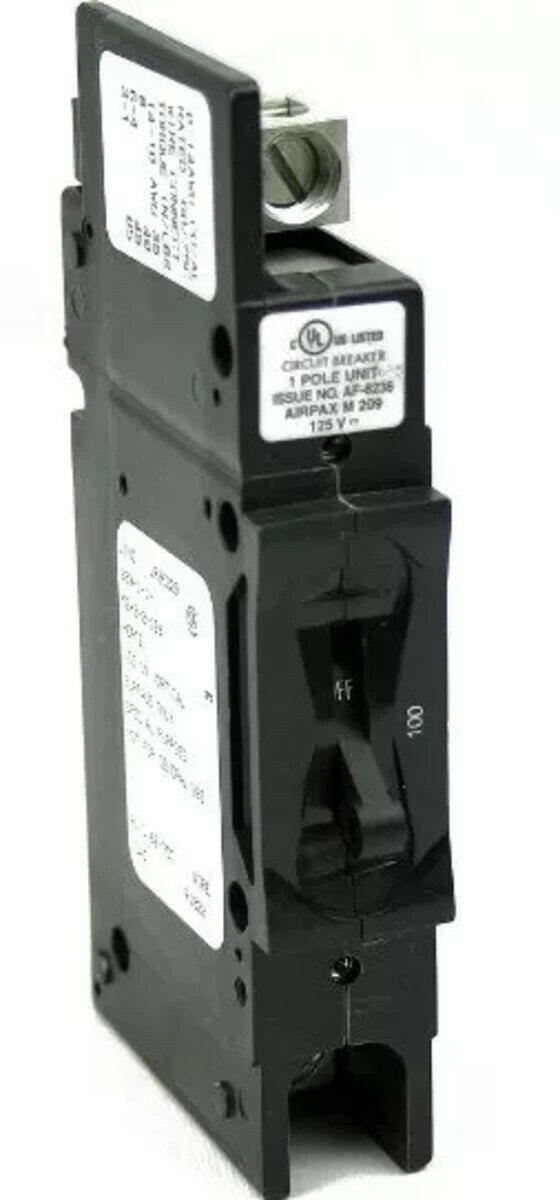

Schneider Electric DC Breaker 100A 125VDC

To protect a DC source (such as a solar charge controller) from short circuits and provide a means of disconnecting the DC source, over-current protection (a DC breaker) must be mounted. This is a breaker that is mounted on the wall. With the mounting foot, it can be fixed to the back of a panel enclosure. Schneider XW Charge Controllers and Schneider Inverters are recommended for use with the Schneider PDP (Power Distribution Panel) or other DC control panels.

Specifications

• Series/Model: 865-DCBRK

• Voltage Rating: 125 VDC

• Current Rating: 100 A

• Mounting Type: Panel

• Standards: ETL, IEC, UL Listed

• Warranty: 2 Years

• Weight: 2 lb

• Application: MPPT 80 600 Output Connection to Battery

Documents

• Specification Sheet
• Instruction/Installation Manual
• Instruction/Installation Manual
• Warranty Information
