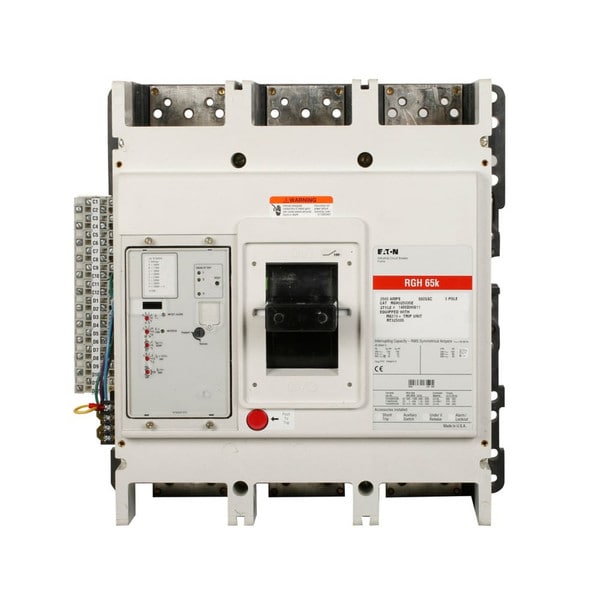

RGH320033E - Eaton Series G Electronic Molded Case Circuit Breaker

The Eaton Series G Electronic Molded Case Circuit Breaker is designed for high-performance protection in demanding electrical systems. Featuring the Digitrip 310 RMS electronic trip unit, this breaker provides advanced protection with precise overcurrent and short-circuit detection. It is rated for 2000A and offers a 125KAIC at 240 Vac and a 65KAIC at 480 Vac, ensuring robust protection against electrical faults. The three-pole configuration, combined with electronic LS trip capabilities, makes it ideal for applications where enhanced safety and reliability are essential. This breaker is compatible with both line and load applications, operating efficiently at 50/60 Hz.

Key Features:

• 2000A current rating for high-capacity protection
• 125KAIC at 240 Vac and 65KAIC at 480 Vac for reliable short-circuit protection
• Digitrip 310 RMS electronic trip unit for advanced protection and control
• Three-pole design for versatile use
• Electronic LS trip for precise overcurrent protection
• Suitable for line and load applications at 50/60 Hz

This Eaton Series G circuit breaker provides superior protection and ensures safe operation in complex electrical systems.

Documents:

Application notes
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
Plug-in adapters for molded case circuit breakers product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Specifications and datasheets
MOEM MCCB product selection guide
