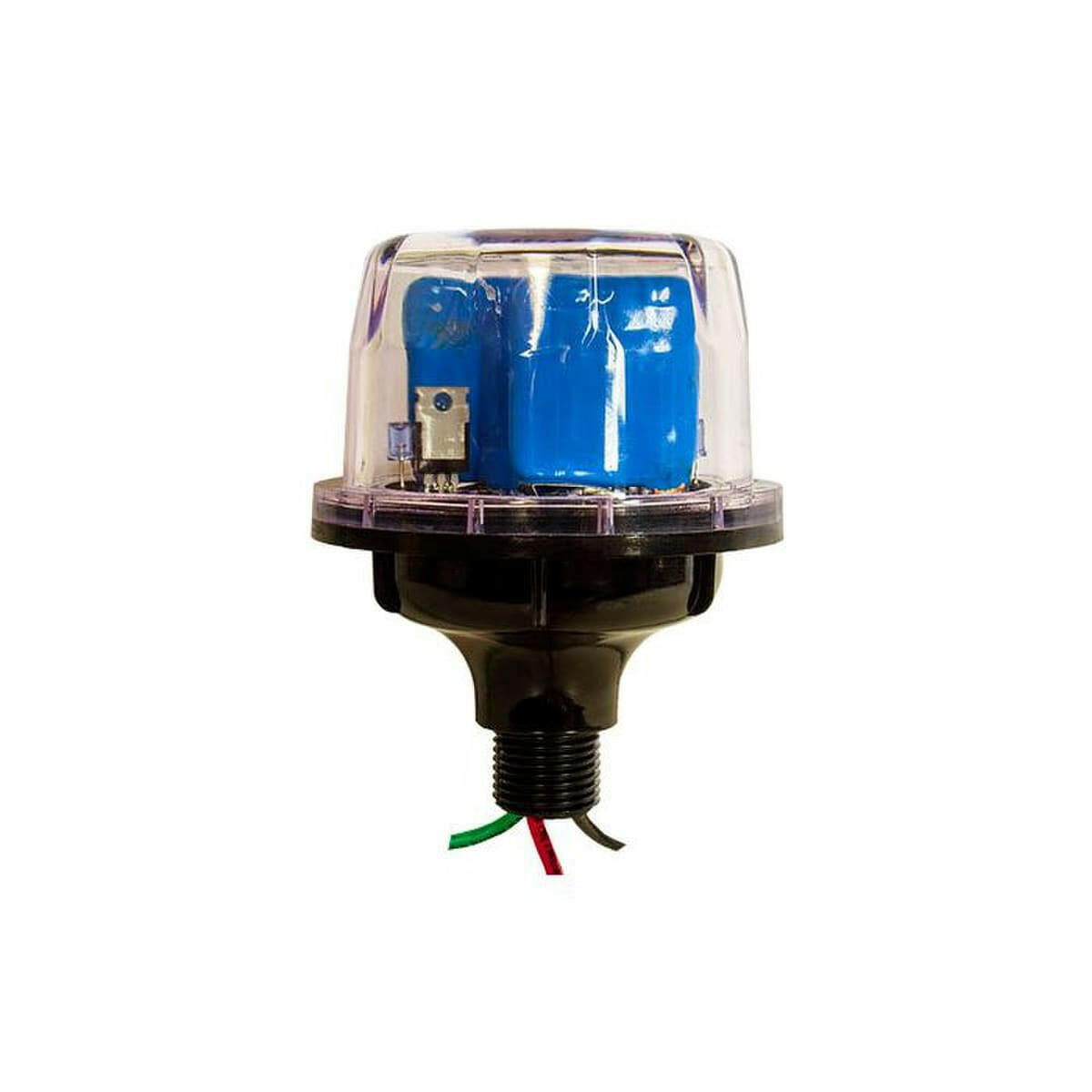

MidNite Solar 115V Surge Protector Device (SKU Part Number MNSPD-115)

The MidNite Solar Surge Protector Device (MNSPD) Is A Type 1 Device Per UL1449 Rev3. It Is Designed For Both AC And DC Systems And Provides Protection To Service Panels, Load Centers Or Where The SPD Is Directly Connected To The Electronic Device Requiring Protection.

Specifications

• Nominal Voltage Rating: 0-90 VAC / 0-115 VDC
• MCOV: 180 V
• VPR Line to Ground: 600 V
• Suggested Placement: Up to 90 VAC Circuits, 12 V, 24 V, 48 VDC Battery Circuits
• Surge Current Per Phase: 80 kA
• SCCR: 10 kA
• Diagnostic Blue LED: Indicates when Voltage is Present Between L1 + L2 (PV+ PV-)
• Thermal Disconnector: Internal Fuse
• Response Time: <1 μs
• Standards: UL1449 4th Ed. Type 1
• Warranty: 5 Years
• Dimensions: 4.4 in Length x 3.8 in Width x 3.5 in Depth


Documents

• Specification Sheet
• Brochure
• Instruction/Installation Manual
