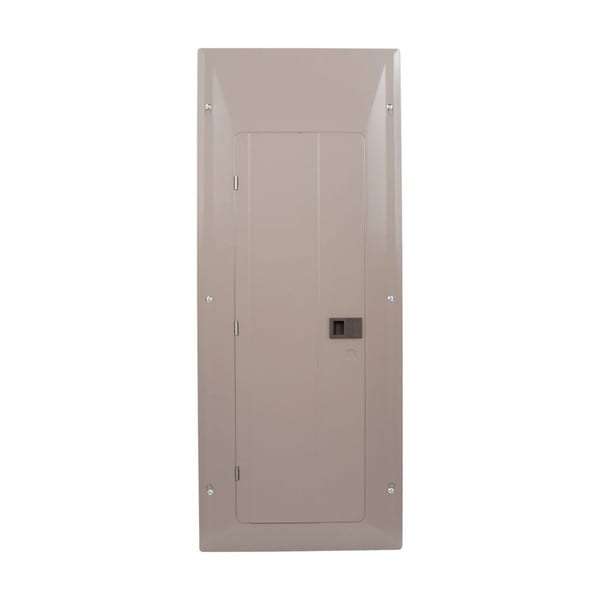

CHP32L225R - Eaton CH Main Lug Loadcenters

The Eaton CH Main Lug Loadcenter is designed for reliable outdoor power distribution with a rugged NEMA 3R metallic enclosure. It supports 225 Amp main lug applications, making it ideal for residential and light commercial setups requiring weather-resistant protection.

This unit offers 32 spaces and 64 circuit capacity, supporting large installations while maintaining compact form. Its copper bus bar ensures superior conductivity and long-term performance. Designed for overhead feed, it supports a three-wire, single-phase, 120/240V system.

Key Features:

• 225 Amp main lug for high-capacity distribution
• 32 spaces, 64 circuit capacity for extensive configurations
• Copper bus provides high conductivity and durability
• NEMA 3R metallic enclosure suitable for outdoor installations
• Overhead feed design with three-wire, single-phase, 120/240V compatibility
• Includes cover for a complete solution

The Eaton CH Main Lug Loadcenter is a durable, weather-resistant panel built to meet demanding load requirements while providing safe and efficient power distribution.

Documents:

Multimedia

AFCI Educational Video
Specifications and datasheets

Eaton Specification Sheet - CHP32L225R
Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
