CHP22B125R - Eaton CH Main Breaker Loadcenters

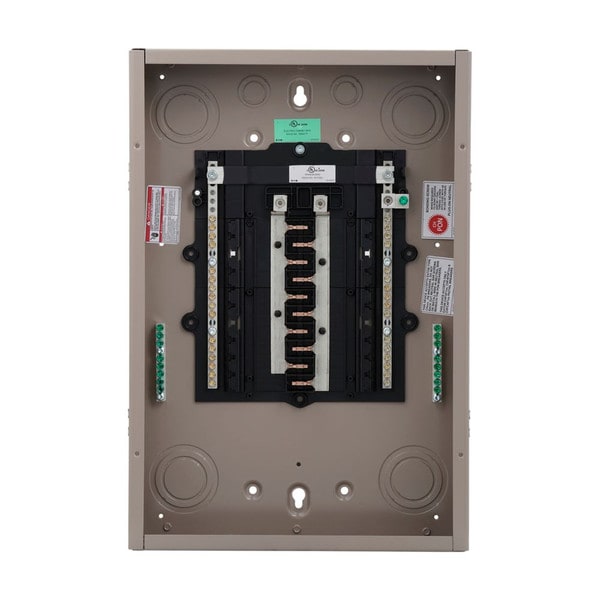

The Eaton CH Main Breaker Loadcenter is built for dependable overhead installations in residential or light commercial settings. Rated at 125 A, it supports single-phase, three-wire systems with a voltage of 120/240 V. Its durable metallic enclosure with a copper bus ensures excellent conductivity and corrosion resistance. This loadcenter includes a NEMA 3R rating, making it suitable for outdoor environments.

Key Features:

• 125 A rating for stable and efficient power handling
• NEMA 3R enclosure for weather-resistant outdoor use
• Copper bus material for enhanced conductivity and longevity
• 44 circuits and 22 spaces for expanded wiring flexibility
• Suitable for single-phase, overhead applications at 120/240 V

The Eaton CH Main Breaker Loadcenter is a reliable solution designed for safe and efficient electrical distribution in demanding environments.

Documents:

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CHP22B125R

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
