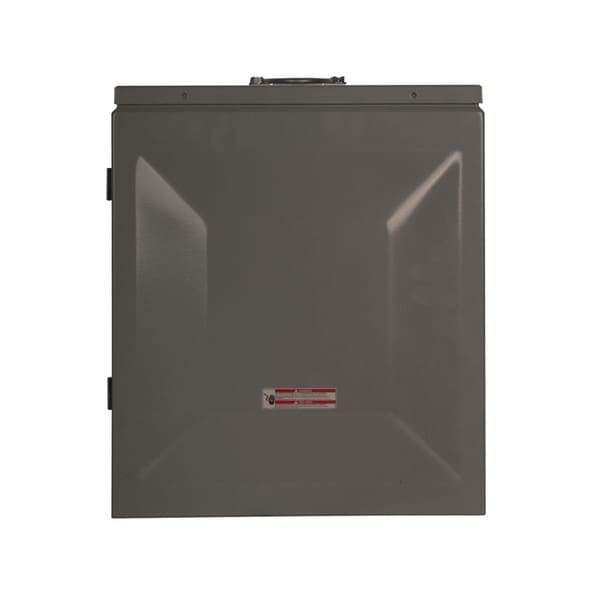

CH6L3125RP - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is designed for use in industrial and commercial applications, offering reliable and efficient electrical distribution. It has a 125 A rating and comes with a metallic enclosure and copper bus for durability. The load center supports a wide range of wire sizes from 14 AWG to 1/1 AWG, making it versatile for various installations. With 6 spaces and 6 circuits, it is ideal for three-phase systems, accommodating 120/240V and 208Y/120V configurations. The NEMA 3R rating ensures it is suitable for outdoor and harsh environments, offering overhead mounting options for added flexibility.

Key Features:

• 125 A rating for effective power distribution
• Copper bus for enhanced conductivity and performance
• Supports wire sizes from 14 AWG to 1/1 AWG
• NEMA 3R rated for outdoor and harsh environment use
• Compatible with three-phase 120/240V, 208Y/120V systems

This Eaton CH Main Lug Loadcenter provides a robust solution for outdoor and industrial electrical installations, ensuring long-term reliability and performance.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH6L3125RP

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
