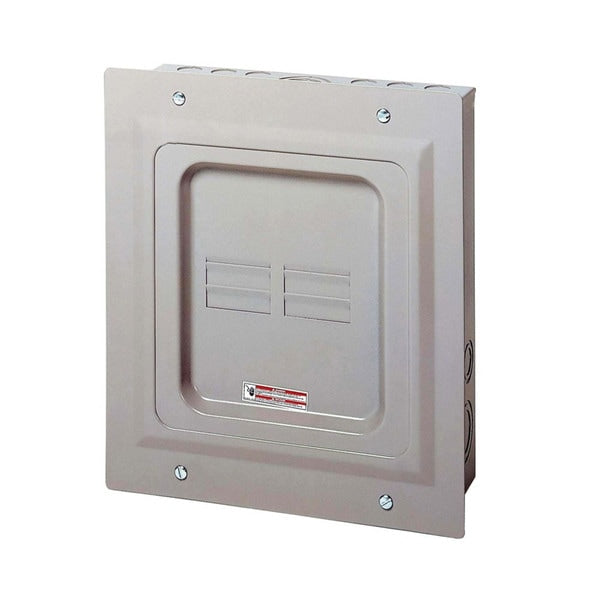

CH4L125FP - Eaton CH Main Lug Loadcenters

The Eaton CH Main Lug Loadcenter provides a compact, high-performance power distribution solution ideal for residential and light commercial applications. With a 125 Amp rating and support for single-phase, three-wire, 120/240V systems, it ensures efficient and safe energy distribution.

Designed with copper bus bars for enhanced conductivity and durability, this loadcenter features a NEMA 1 metallic enclosure for indoor use and offers top or bottom feed flexibility. The flush mount design ensures a clean, integrated appearance, while eight poles across four spaces allow for manageable circuit expansion.

Key Features:

• 125 A main lug rating for dependable load handling
• Flush mount design for streamlined installation
• Copper bus for long-term electrical reliability
• Eight-pole, four-space configuration
• Single-phase, three-wire (120/240V) system
• 14–1/0 AWG wire range for flexible wiring
• NEMA 1 metallic enclosure – indoor-rated
• Top/Bottom feed for installation versatility
• Compatible with Eaton CH breakers

Choose the Eaton CH 125A Main Lug Loadcenter for a space-saving, code-compliant solution that doesn’t compromise on performance or quality.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Multimedia

AFCI Educational Video
Specifications and datasheets

Eaton Specification Sheet - CH4L125FP
Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
