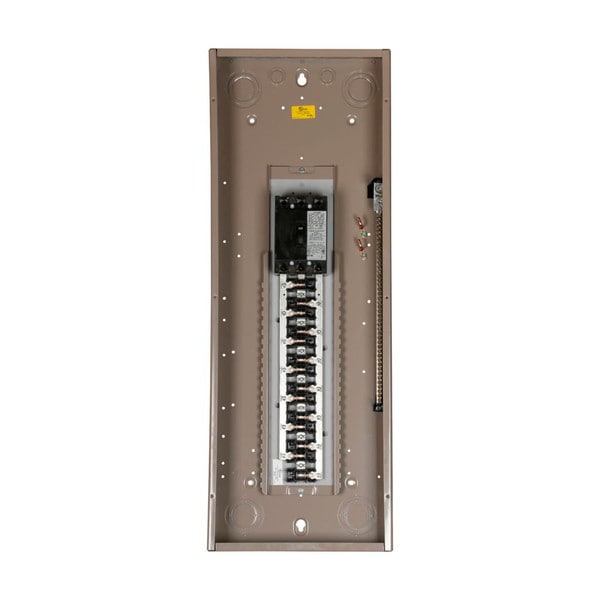

CH42B3225L - Eaton CH Main Breaker Loadcenter

The Eaton CH Main Breaker Loadcenter (Model: CH42B3225L) is a high-capacity electrical distribution panel designed for three-phase, four-wire systems. With a 225 A rating and a copper bus, it ensures efficient power distribution and circuit protection.This loadcenter supports up to 42 circuits and 42 spaces, making it suitable for various electrical systems.The NEMA 1-rated metallic enclosure provides durability and protection in indoor installations.It accommodates wire sizes ranging from 2/0 AWG to 300 kcmil, offering flexibility for different installation requirements.

Key Features:

• 225 A main breaker with 10 kAIC interrupting capacity
• Supports 42 circuits and 42 spaces for versatile configurations
• Copper bus material for reliable conductivity
• NEMA 1 rated metallic enclosure for indoor use
• Designed for top or bottom feed installations
• Accommodates wire sizes from 2/0 AWG to 300 kcmil
• Dimensions: 14.31" L x 3.88" W x 34.13" H; Weight: 36.72 lbs

This Eaton CH Main Breaker Loadcenter offers a reliable and efficient solution for managing electrical distribution needs.
