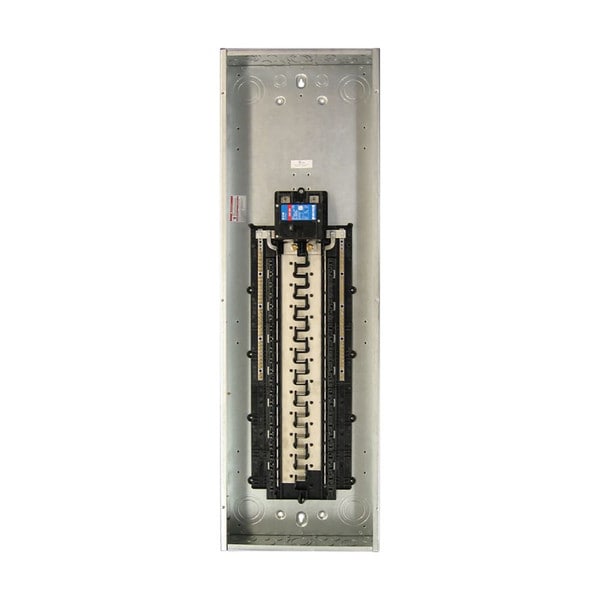

BRP42BC225 - Plug-On Neutral Main Circuit Breaker Loadcenter

The Plug-On Neutral Main Circuit Breaker Loadcenter, 225A is a high-capacity power distribution solution engineered for safety, reliability, and ease of installation. With support for up to 84 circuits and 42 spaces, this unit is ideal for residential or light commercial setups that demand performance and flexibility.

Key Features:

• 225 A main breaker with plug-on neutral design for simplified wiring
• Supports up to 84 circuits and 42 spaces for extensive capacity
• Constructed with durable copper bus material for optimal conductivity
• Includes cover, and rated 25KAIC for high fault current protection
• NEMA 1 rated metallic enclosure for indoor use
• Compatible with 6–1/0 AWG Cu/Al wire sizes for versatile connections

This Plug-On Neutral Main Circuit Breaker Loadcenter, 225A delivers a powerful and organized solution for expanding or upgrading electrical systems.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP42BC225

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
