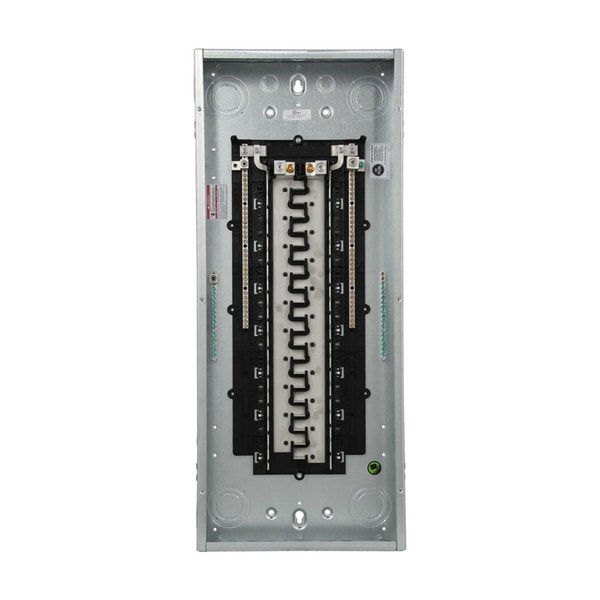

BRP40L200G - Eaton BR Main Lug Loadcenter

Eaton BR Main Lug Loadcenter is engineered for safe and efficient power distribution in residential or light commercial applications. Featuring a 200A main lug configuration, this panel supports up to 80 circuits with 40 spaces and 24 poles. Constructed with a durable aluminum bus in a metallic gray enclosure, it meets NEMA 1 standards for indoor use. The design allows for both surface and flush mounting, offering flexibility during installation.

Key Features:

• Amperage Rating: 200A
• Voltage Rating: 120/240V
• Circuit Capacity: 80 Circuits
• Spaces and Poles: 40 Spaces, 24 Poles
• Bus Material: Aluminum
• Mounting: Surface or Flush
• Enclosure Type: NEMA 1 (Indoor Use)
• Panel Type: BR Main Lug
• Configuration: Two Hots, a Neutral, and a Ground
• Catalog Number: CSR2200

Ideal for residential load management, this main lug loadcenter provides reliable protection and organized circuit distribution.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP40L200G

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
