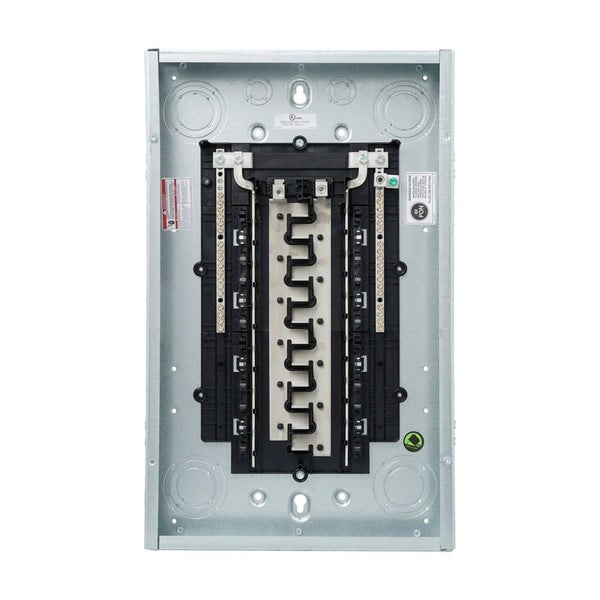

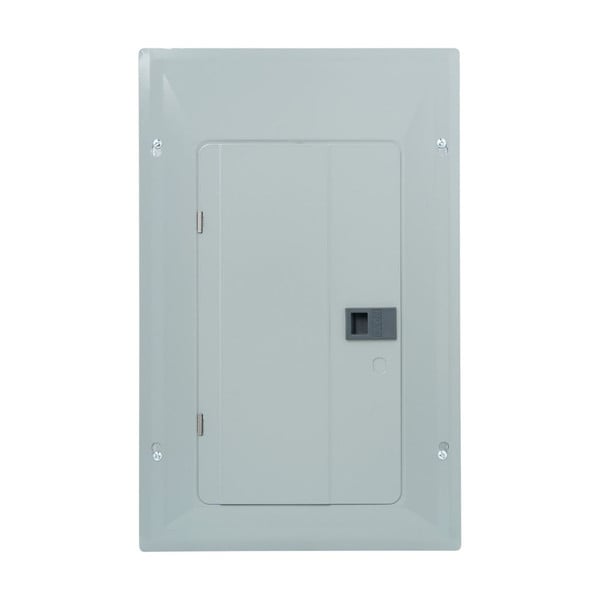

BRP24L125 - Eaton Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter offers reliable performance and flexibility for residential electrical distribution systems. Designed for surface or flush mounting, this loadcenter is equipped with a main lug configuration and includes a ground bar for simplified grounding.

Built with a durable metallic NEMA 1 enclosure, it is ideal for indoor applications. The panel supports up to 24 circuits with 12 spaces and is compatible with Type BR 1-inch breakers. Featuring aluminum bus construction, a 125A current rating, and a 10kAIC interrupting capacity, it ensures dependable circuit protection.

Key Features:

• Configuration: Main Lug Only
• Amperage Rating: 125 A
• Circuit Capacity: 24 Circuits / 12 Spaces
• Bus Material: Aluminum
• Enclosure Type: NEMA 1, Metallic
• Mounting: Surface or Flush
• Breaker Type Compatibility: Type BR
• Voltage Rating: 120/240 V
• Interrupt Rating: 10 kAIC
• Includes: Ground Bar and Cover
• Wiring Configuration: Two Hots and a Neutral

This Eaton BR Loadcenter provides a dependable and compact solution for managing residential power distribution with ease and safety.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP24L125

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
