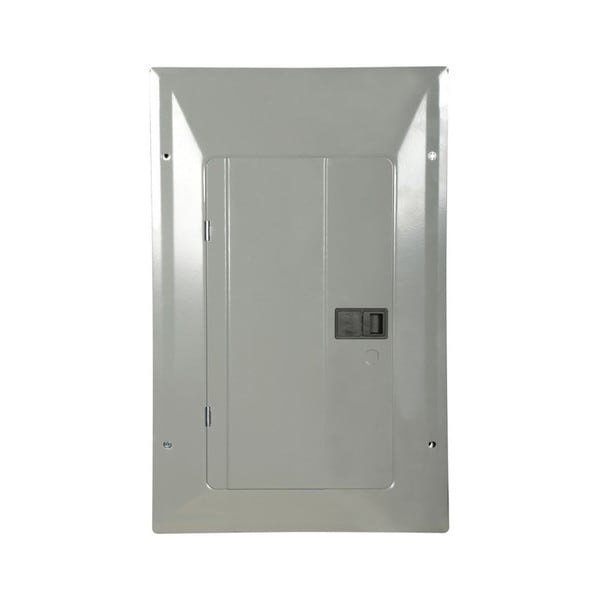

BR2424L125G - Main Lug Load Center

The Main Lug Load Center is a versatile and reliable solution for residential and light commercial electrical installations. With a capacity of 125 A and designed for 120/240 V AC systems, this load center features 24 spaces and accommodates up to 24 circuits, offering ample room for electrical distribution. The center is constructed from durable metallic material and includes an aluminum bus bar for efficient power distribution. It supports wire sizes ranging from 6 to 2/0 AWG, providing flexibility for a variety of wiring configurations. With overall dimensions of 14.31 inches in length, 3.88 inches in width, and 23 inches in height, this load center is compact enough for easy installation while offering robust performance and reliability.

Key Features:

• Product Type: Main Lug Load Center
• Capacity: 125 A
• Voltage: 120/240 V AC
• Spaces: 24
• Circuits: 24
• Wire Size Range: 6 to 2/0 AWG
• Material: Metallic with Aluminum Bus
• Dimensions: 14.31 in (Length) x 3.88 in (Width) x 23 in (Height)
• Application: Suitable for residential and light commercial use

This main lug load center is a solid and space-efficient solution for safe and reliable electrical distribution, ensuring smooth operation for a variety of electrical needs.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR2424L125G
